Selenium and Kubernetes for Scalable Parallel Automated Tests

Hi all, for a long time I could not find time to write an article on swtestacademy because of the busy schedule at work. However, during the Eid holiday, I wanted to play with Kubernetes, scale the selenium grid with it, and share my experience with you all. Previously, we have written articles on Docker with Selenium, Selenoid with Selenium, Selenium Grid, and Parallel Testing with TestNG. In this article, we will spin up and scale Selenium Grid with Kubernetes and Docker and run parallel testing with this solution. We will use Kubernetes for automating deployment, scaling, and management of containerized Selenium Grid, and Docker for operating-system-level virtualization which is also known as containerization.

I will not go into too much theory in this post. However, if you want to learn more theory of Kubernetes, I would like to suggest my friend Karthik K.K.’s Kubernetes series. It will help all of you to learn the Kubernetes fundamentals.

In this article, our aim is to create a selenium grid with a hub, three chrome nodes, and three firefox nodes. These grid modules will communicate with each other over Kubernetes Service. This is the main architecture of our grid setup. Also, we will use Kubernetes Rolling Deployment, Service, Replication Controller concepts. Finally, we will modify our Selenium TestNG parallel test execution project URL as our grid’s URL and run our tests in parallel. First, we need to install Docker on our machine (PC or MAC). I am using a MAC but the installation of Docker is pretty straightforward for both OS. After this step, you will start the Docker on your machine.

Then, we need to install Kubernetes and Minikube on our machine. For this, we need to open a terminal and run the below commands consecutively.

brew install minikube
brew install kubernetes-cli
brew upgrade minikube
brew upgrade kubernetes-cli
brew link --overwrite kubernetes-cli
minikube config set vm-driver hyperkit
minikube start

After these commands, we should see the below result which shows minikube has started successfully.

When minukube has been started, we can use minikube and kubectl commands to create our Selenium Grid Architecture with Kubernetes. We will communicate over the Kubernetes Service to reach the hub and the nodes. Kubernetes Service has bi-directional communication between the hub and the nodes.

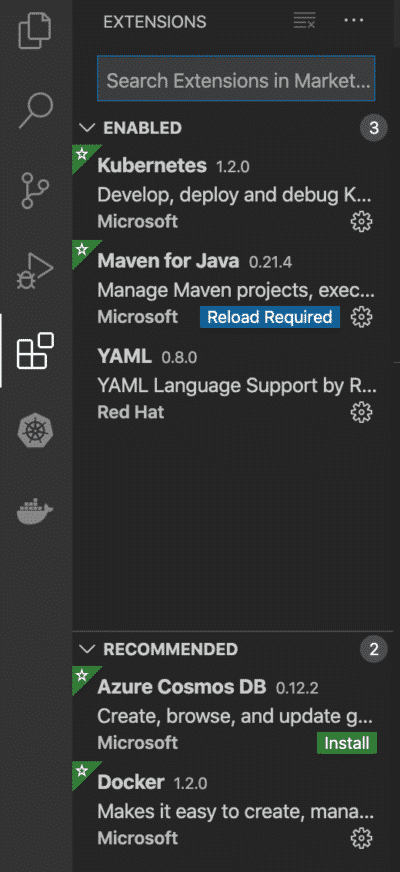

Before starting to create our YAML files, I highly suggested using Microsoft VS Code and install YAML, Kubernetes, and Docker plugins.  Let’s start with the Selenium Hub by using the Kubernetes Rolling Deployments scheme.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: selenium-hub
spec:
  selector:
    matchLabels:
      app: selenium-hub
  strategy:
    type: RollingUpdate
    rollingUpdate:
     maxSurge: 1
     maxUnavailable: 0
  template:
    metadata:
      labels:
        app: selenium-hub
    spec:
      containers:
      - name: selenium-hub
        image: selenium/hub:3.141.59-20200515
        resources:
          limits:
            memory: "1000Mi"
            cpu: "500m"
        ports:
          - containerPort: 4444
        livenessProbe:
            httpGet:
              path: /wd/hub/status
              port: 4444
            initialDelaySeconds: 30
            timeoutSeconds: 5

In the above YAML script, we have used the Kubernetes Deployment concept to create a Selenium Grid Hub and we have used “selenium/hub:3.141.59-20200515” as the hub image. You can find the other versions here: https://hub.docker.com/r/selenium/hub/tags. You can also change the CPU and Memory limits. We can also check the hub via its Probe via “/wd/hub/status” endpoint. By running below command, we will create the deployment:

kubectl create -f deploy.yml

After creation, you can see the details with kubectl’s describe command.

kubectl describe deploy

>> Extra Information Part Started

By adding Strategy as RollingUpdate we can change the hub’s version and after this, we can apply the changes without re-creation the deployment.

After running the below command, new changes will be applied.

kubectl apply -f deploy.yml --record

Then, you will see the below result.

In this way, you can easily update your selenium grid version without hassle. Also, you can check the history via below command:

kubectl rollout history deployment selenium-hub

And also you can easily revert back any revision via the below command:

kubectl rollout undo deployment selenium-hub --to-revision=2

This is really nice for us to change the Selenium Grid versions very easily. Also, if it is required, you can overwrite the default properties of the hub as shown below.

You can verify your values when you started your Selenium Grid as shown below. I used default values for this example.

>> Extra Information Part Ended

Now, we can continue with Kubernetes Service creation. The service’s YAML file is as follows:

apiVersion: v1
kind: Service
metadata:
  name: selenium-srv
spec:
  selector:
    app: selenium-hub
  ports:
  - port: 4444
    nodePort: 30001
  type: NodePort
  sessionAffinity: None

We named the service “selenium-srv” and we connected it with our hub and our nodePort is 30001 which means we can reach the hub with this port. SessionAffinity is None by default thus you can omit the last line. It supports “ClientIP” and “None”. Used to maintain session affinity. Enable client IP-based session affinity. Must be ClientIP or None. Defaults to None. More info. We need to create our service with the below command:

kubectl create -f service.yml

After creation, we can check the service with the below command:

kubectl describe service

Now, we can reach our hub via http://192.168.64.3:30001/

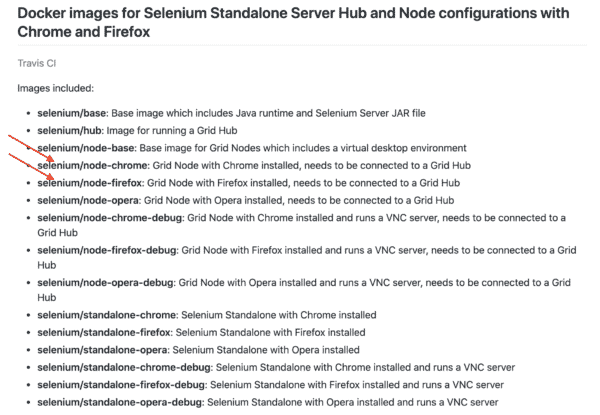

It is time to create our Selenium Grid Nodes. For this, we will use the Replication Controller concept. You can also use the Replica Set concept. As you see on the Docker Selenium page, we will use the below images:

• selenium/node-chrome
• selenium/node-firefox

The Node Chrome replication controller is as follows:

apiVersion: v1
kind: ReplicationController
metadata:
  name: selenium-node-chrome-rep
spec:
  replicas: 3
  selector:
    app: selenium-node-chrome
  template:
    metadata:
      name: selenium-node-chrome
      labels:
        app: selenium-node-chrome
    spec:
      containers:
        - name: selenium-node-chrome
          image: selenium/node-chrome
          ports:
            - containerPort: 5900
          env:
           - name:  HUB_HOST
             value: "selenium-srv"
           - name: HUB_PORT
             value: "4444"

Node’s port is 5900 and it is connected to the hub over Kubernetes Service with the config which is specified under env tag and our node pod count is 3. Let’s do the same for the Node Firefox. This time, for firefox node we will use port 5901 and it will be also connected with our hub over Kubernetes service.

apiVersion: v1
kind: ReplicationController
metadata:
  name: selenium-node-firefox-rep
spec:
  replicas: 3
  selector:
    app: selenium-node-firefox
  template:
    metadata:
      name: selenium-node-firefox
      labels:
        app: selenium-node-firefox
    spec:
      containers:
        - name: selenium-node-firefox
          image: selenium/node-firefox
          ports:
            - containerPort: 5901
          env:
           - name:  HUB_HOST
             value: "selenium-srv"
           - name: HUB_PORT
             value: "4444"

Let’s create the Replication Controllers with the below commands:

kubectl create -f repff.yml

kubectl create -f repchrome.yml

and our Kubernetes Cluster setup completed. Now, we can get all created pods via the below command:

kubectl get pods

and you can also see the Kubernetes Dashboard by running the below command:

minikube dashboard

Then, the Kubernetes Dashboard automatically opens.

If you want to delete, get, and describe Deployment, Pods, Replication Controllers, Service, etc. you can use below commands:

#Delete all replication controllers
kubectl delete rc --all

#Delete chrome replication controller
kubectl delete rc selenium-node-chrome-rep

#Get Replication Controllers
kubectl get rc

#Get Pods
kubectl get pods

#Delete all pods
kubectl delete pods --all

#Delete a pods
kubectl delete pods/firstpod

#Describe a pod

#Get deployments
kubectl get deploy

#Describe Deployment
kubectl describe deploy selenium-hub

#Delete all deployments
kubectl delete deploy --all

#For service and replica sets, also you need to use "service" and "rs" keyword and you can use the same commands.

>> Extra Information Part Started

If you want, you can also add auto-scaling functionality to your pods based on CPU usage as below commands. I tried but I could not see the auto-scaling with horizontal auto-scaling (HPA) but if you see that it is worked, please let me know in the comments.

kubectl autoscale rc selenium-node-chrome --min=3  --max=5 --cpu-percent=80

kubectl autoscale rc selenium-ff-rep --min=3  --max=5 --cpu-percent=80

In the above commands our min pod number will be 3 and max will be 5 and after %80 CPU usage auto-scaler kicks in and spin up a new pod. You will get the details of the horizontal auto scalers with below command:

kubectl get hpa

You can get more information about horizontal auto scalability here.

>> Extra Information Part Ended

Now, let’s test this grid architecture by changing the remote webdriver URL of this project. The only thing that I changed in the project is the URL as http://192.168.64.3:30001/wd/hub shown below.

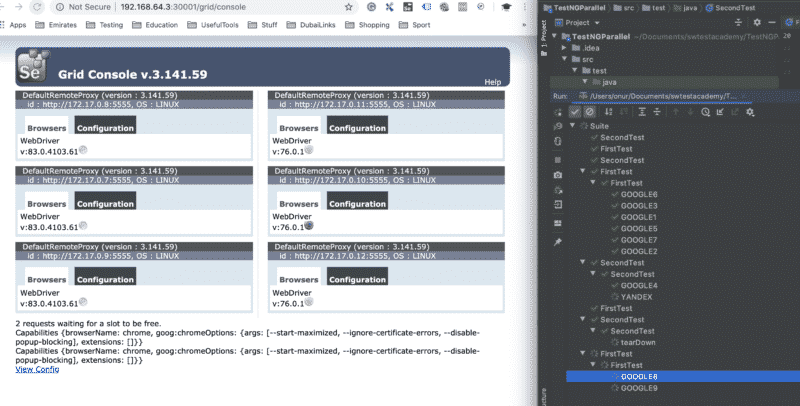

Here is the project repo: https://github.com/swtestacademy/TestNGParallel When I run the project, I can see the below results. Tests are running parallel as described in TestNG.xml and our Kubernetes Selenium Grid cluster also works as expected.

This is my first trial to create a Kubernetes Cluster for Selenium Grid and it can be enhanced with smarter auto-scaling features, some reverse-proxy settings, multi-hub cluster setup, and Replica Sets instead of Replication Controllers but if you need to use Docker and Selenium Grid for your application, you can try these settings, start using Kubernetes and then enhance this solution based on your needs.

See you in another article!
